RX-Shape, Free Standing Horn

RX-Shape horns are the rounded free-standing evolution of the X-Shape concept.

They retain all the acoustic qualities, loading behavior, and constant directivity performance of the X-Shape, now optimized for free-standing use.

RX-Shape are designed for free-standing mounting, making them extremely simple to use.

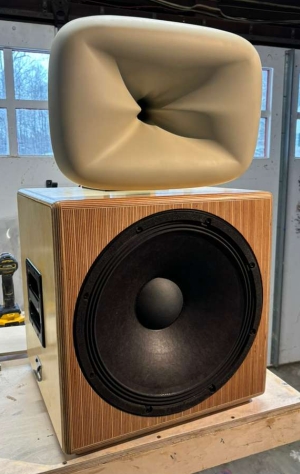

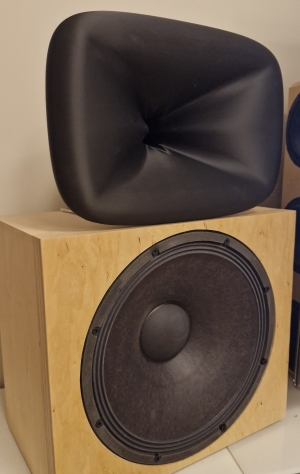

They can be directly placed on top of a conventional loudspeaker cabinet, aligned with a mid-woofer below, without requiring a front baffle cut-out, round-over machining, or complex integration work.

For now, RX-Shape is reserved for DIY and professional custom builds.

We recommend keeping the width of the supporting cabinet close to the size of the mid-woofer.

A cabinet that is too wide will interfere with the natural directivity of the woofer, while a properly proportioned cabinet reinforces low‑mid directivity, ensuring a smooth directivity match with the RX-Shape horn above, without requiring woofer front baffle round-over.

Our directivity match article explains how intentionally placing midrange narrowing on a woofer cabinet will reinforce the woofer’s natural directivity, improving the transition to the horn.

Horns and their Polar plot

: To order, discover our RX horn versions below, then contact us here to proceed to payment and worldwide shipment.

All measurements are identical to the corresponding X-Shape equivalent models, performed with the ideal simulated return, taken at 1/24 resolution in a half-space presentation (±90°).

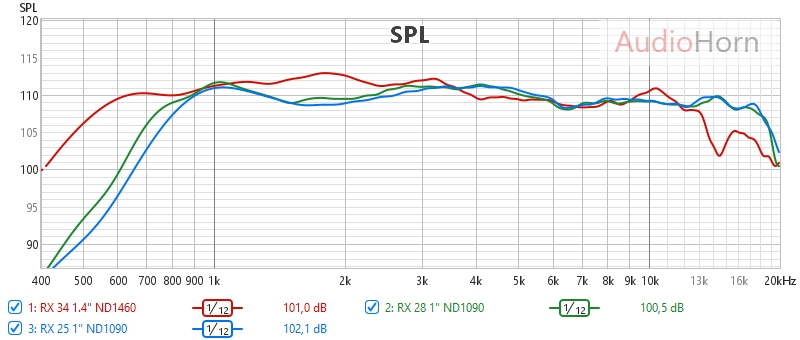

SPL

• 1": RX 25 and RX 28 with 18Sound ND1090
• 1.4": RX 34 with 18Sound ND1460
