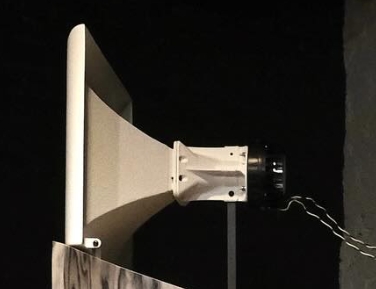

MX-Shape, next generation modular big horn

MX-Shape line up

The MX-Shape horn is designed modular approach based on X-Shape technology.

This innovative horn features a modular design for easier shipping and customization.

For OEM the throat (PLA or MJF, 1.4" or 1.5") comes in various options, while the profile can be sent as a digital plan, this allows for customization of the horn width (30cm to 200cm) without affecting price.

For DIY, all parts are manufactured at AudioHorn, the price is depending of size and choosen material, Walnut or Birch Plywood.

Versions and price :

: To order you can discover our horn versions and prices bellow then contact us here to proceed to payment and worldwide shipment.

On demand size and finish:

Birch Plywood Varnish

Birch Plywood Oil + Wax

US Walnut Varnish

US Walnut Oil + Wax

Printed Throat PLA or MJF
Size and Price on demand
Round-over for free standing usage

Raw Throat (black matt PLA or PETG-HF, MJF on demand due to price fluctuation): 380€/U (Painted black: +90€/U )
profile plan (STEP file): 180€
wood machined full profile with delivery: on demand

Measurement

Here is the measurement for a 50cm version :

Measurements are from 300hz to 20kHz, with a 18Sound ND3T, the accident in HF is due to Ti diaphragm breakup, not to the horn.

Horizontal:

Vertical:

Response (grey) and DI (red):

Compared with other solutions like JBL 2360, HP9040, Manta-Ray horn or first generation “CD” horns

We can compare it with some other big full range horn like the JBL 2360A or JBL 2365A.

The JBL 2360A was the last big representative in date of the big familly of Manta-Ray horn then Quadratic-wave and “CD” diffraction horns.

We can see midrange narrowing on this 2360, a lot of midrange beaming too and diffractions (dark red) from 1 to 15 Khz. All theses defaults aren’t present on MX-Shape.
